Shehan M. Parmar

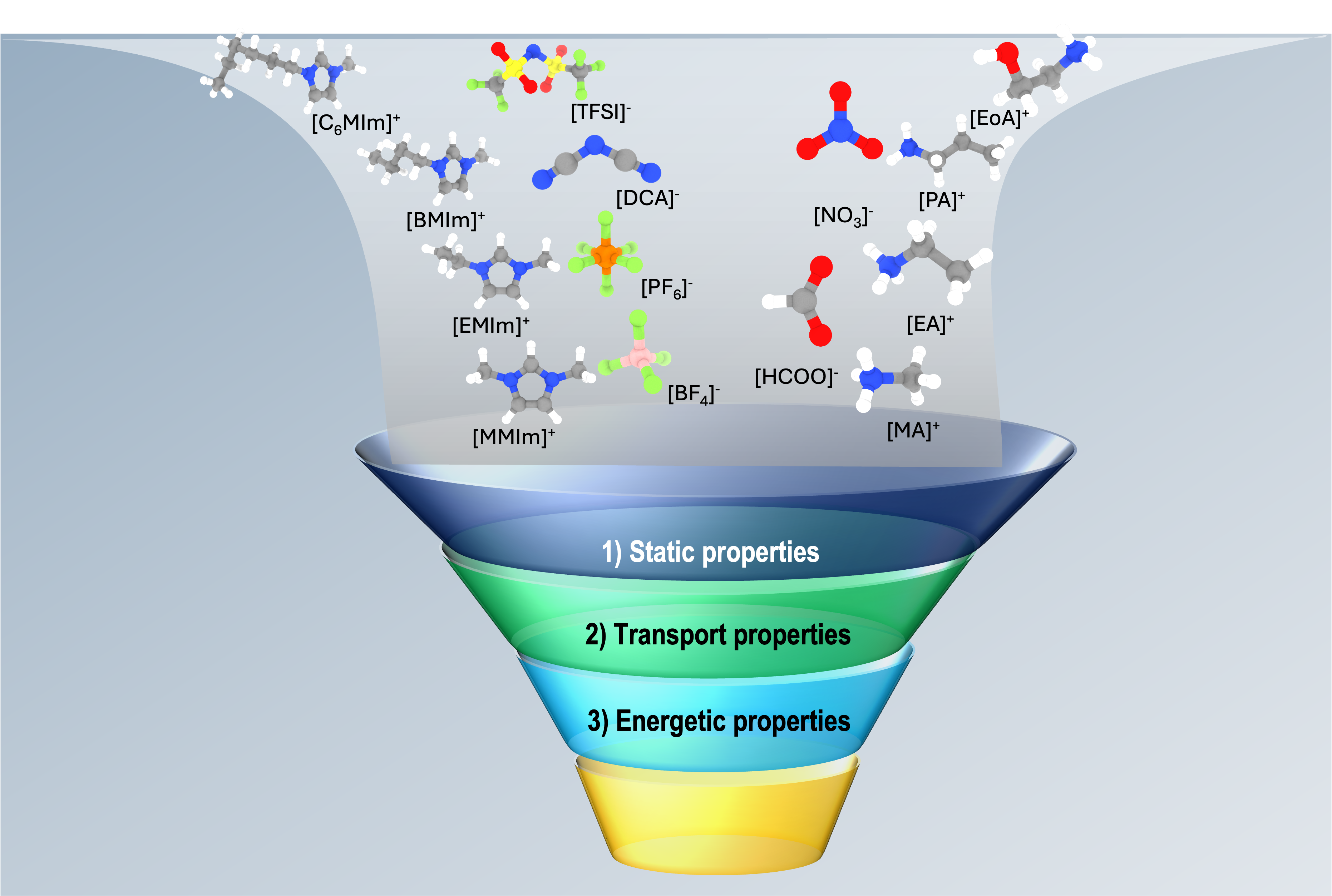

The emergence of multimode propulsion (MMP) architectures for in-space propulsion shows great promise for improving the future of spacecraft mission design. However, seeking ideal propellants requires traversing a complex chemical design space that satisfies optimal chemical and electric propulsion requirements. To this end, we propose a computational, high-throughput screening framework founded upon software developed by the Materials Project and accurate, polarizable molecular dynamics (MD) force fields to discover new MMP propellants. We highlight the metric space within the scope of this framework and present a case study of a candidate ionic liquid (IL) propellant mixture composed of hydroxylammonium nitrate (HAN) and hydroxyethylhydrazinium nitrate (HEHN) to inform important paths for the future.

Molecular dynamics simulations of binary mixtures comprising 2-hydroxyethylhydrazinium nitrate (HEHN) and hydroxylammonium nitrate (HAN) were conducted using the polarizable APPLE&P force field to investigate fundamental properties of multimode propulsion (MMP) propellants. Calculated densities as a function of temperature were in good agreement with experiments and similar simulations. The structural properties of neat HEHN and HAN–HEHN provided insights into their inherent, protic nature. Radial distribution functions (RDFs) identified key hydrogen bonding sites located at N–H···O and O–H···O within a first solvation shell of approximately 2 Å. Angular distribution functions further affirmed the relatively strong nature of the hydrogen bonds with nearly linear directionality. The increased hydroxylammonium cation (HA+) mole fraction shows the influence of competitively strong hydrogen bonds on the overall hydrogen bond network. Dominant spatial motifs via three-dimensional distribution functions along with nearly nanosecond-long hydrogen bond lifetimes highlight the local bonding environment that may precede proton transfer reactions.

In this study, we investigate the quaternary ammonium-based ionic liquid (QAIL), methyltrioctylammonium bis(trifluoromethylsulfonyl)imide, [N1888][TFSI], utilizing small angle neutron scattering (SANS) measurements and polarizable molecular dynamics (MD) simulations to characterize the short- and long-range liquid structure. Scattering structure factors show signatures of three length scales in reciprocal space indicative of alternating polarity (k ∼ 0.44 Å–1), charge (k ∼ 0.75 Å–1), and neighboring or adjacent (k ∼ 1.46 Å–1) domains. Excellent agreement between simulation and experimental scattering structure factors validates various simulation analyses that provide detailed atomistic characterization of the different length scale correlations. The first solvation shell structure is illustrated by obtaining radial, angular, dihedral, and combined distribution functions, where two dominant spatial motifs, N+···N– and N+···O–, compete for optimal packing around the polar head of the [N1888]+ cation. Intermediate and long-range structures are governed by the balance between local electroneutrality and octyl chain networking, respectively. By computing the charge-correlation structure factor, SZZ, and the spatial extent of the octyl chain network using graph theory, the bulk-phase structure of [N1888][TFSI] is characterized in terms of electrostatic screening and apolar domain formation length scales.

Molecular dynamics (MD) simulations were performed for ion extraction from electrospray thrusters to investigate relevant extraction processes numerically. To approximate the electrospray jet tip, a simulation domain consisting of 4-5 nm-sized ionic liquid droplets was used. The extracted ion angles and kinetic energies from EMI–BF4 (1-ethyl-3-methylimidazolium tetrafluoroborate) and EMI–Im (1-ethyl-3-methylimidazolium bis((trifluoromethyl)sulfonyl)imide) droplets were quantified by applying uniform electric fields of 1.3–1.7 V nm−1. The MD simulations are in great agreement with simulations presented in the literature and consistently show a greater preference for monomer emission than reported experimentally. At field strengths above 1.5 V nm−1, apparent droplet fracturing and breakup lead to an increase in ion angular velocity distributions. Greater mobility of EMI–BF4 ions than EMI–Im was also observed, indicative of the crucial role of cation-anion hydrogen bond strengths in ion extraction and beam composition between different propellants.

High-throughput density functional theory (DFT) calculations have become a vital element of computational materials science, enabling materials screening, property database generation, and training of "universal" machine learning models. While several software frameworks have emerged to support these computational efforts, new developments such as machine learned force fields have increased demands for more flexible and programmable workflow solutions. This manuscript introduces atomate2, a comprehensive evolution of our original atomate framework, designed to address existing limitations in computational materials research infrastructure. Key features include the support for multiple electronic structure packages and interoperability between them, along with generalizable workflows that can be written in an abstract form irrespective of the DFT package or machine learning force field used within them. Our hope is that atomate2’s improved usability and extensibility can reduce technical barriers for high-throughput research workflows and facilitate the rapid adoption of emerging methods in computational material science.
